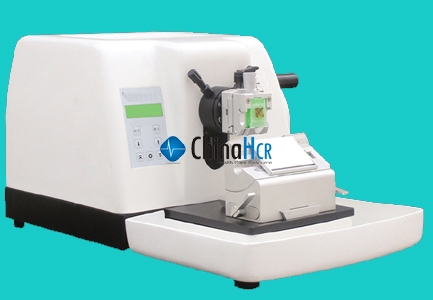

We successful design and complete a new generation of microtome, it integrate the modern and ergonomically design, adopted with our advanced technique, with the excellent performance, it reflect as the characteristic of latest model in Histo-pathology field, that point the way to the future.

Technical Specifications:

1. Motorized drive.

2. Compatible Embedding Material: Paraffin, Plastic.

3. Range of the thickness of slice: 0.25 - 60 μm.

Range of the thickness of trimming: 0.25 - 60 μm.

4. Setting thickness of slice ranges:

          0.25----1 μm     increment       0.25 μm

            1----10 μm    increment          1 μm

           10----20 μm    increment          2 μm

           20----60 μm    increment          5 μm.

5. Specimen horizontal feeding: 28 mm.

   Stroke Length: 58 mm.

6. Maximum section of slice: 50 x 50 mm.

7. Disposable Blade Index: Low profile blades.

8. Retractable specimen clamp, auto feed cutoff: with alarm. Lateral knife holder.

9. Dimension and weight:

   Microtome: Length x Width x Height: 520 x 430 x 330 mm, 24 kg.

10. Working Voltage: 220 V, 50 Hz. (110 V, 60 Hz. Optional)
